Generate Visual Assets

To generate visual Assets, perform the following steps.

To generate Visual Assets:

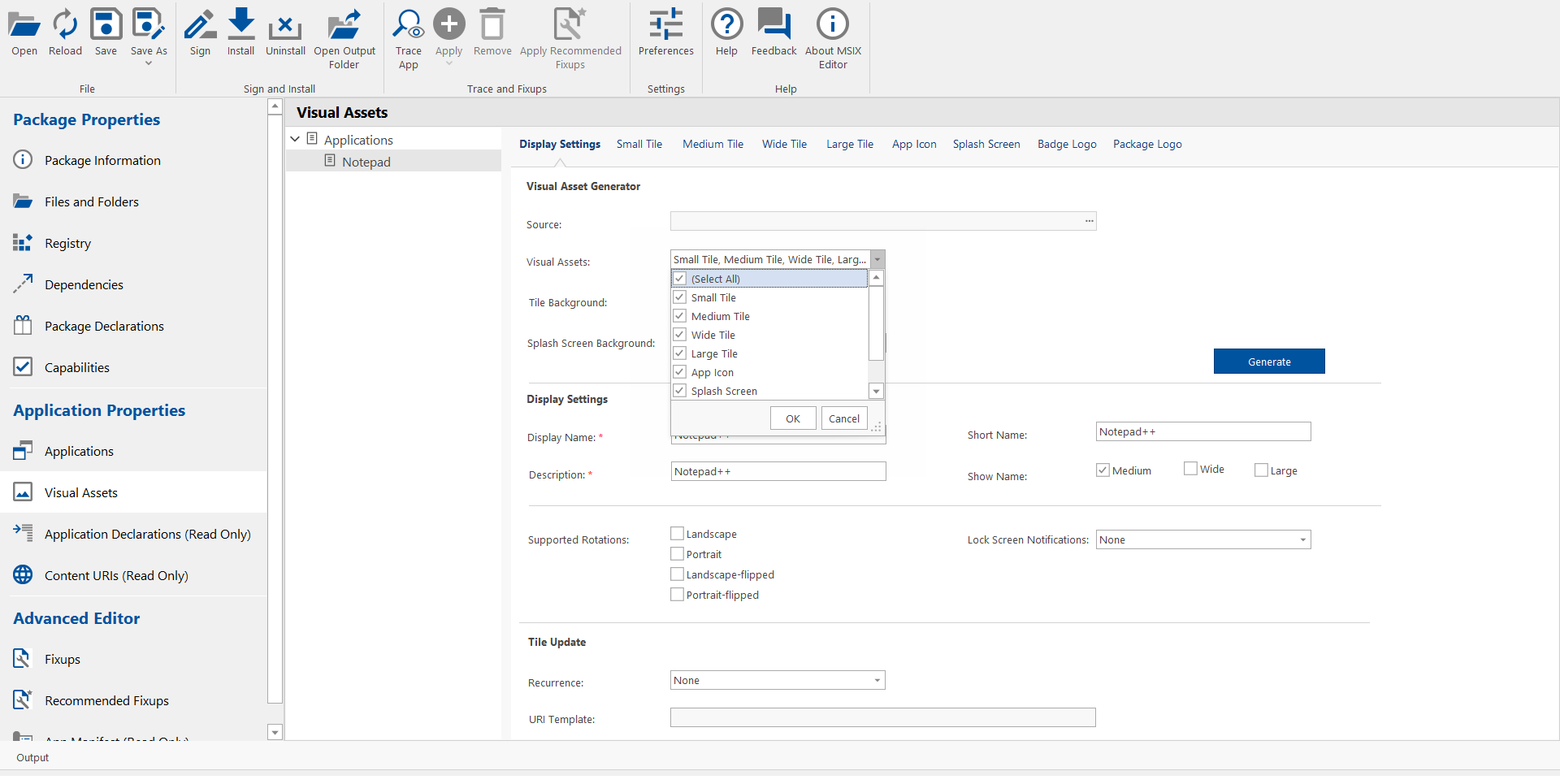

  1. Click on Visual Assets view in the left pane under Application Properties. The Visual Assets page appears.
  2. In the Source field, specify the source file location, or click Browse and select the desired file (in .png, .jpg, .jpeg, .gif, .pdf, .tiff, .bmp, .svg, .ico, format).
  3. In the Visual Assets drop down, select desired visual assets, and then click Ok button.
    note

    Multiple selections are allowed.

  4. In the Tile Background drop down, select desired tile background color from the list.
  5. In the Splash Screen Background drop down, select desired splash screen color from the list.
  6. After entering the above fields, click Generate button.

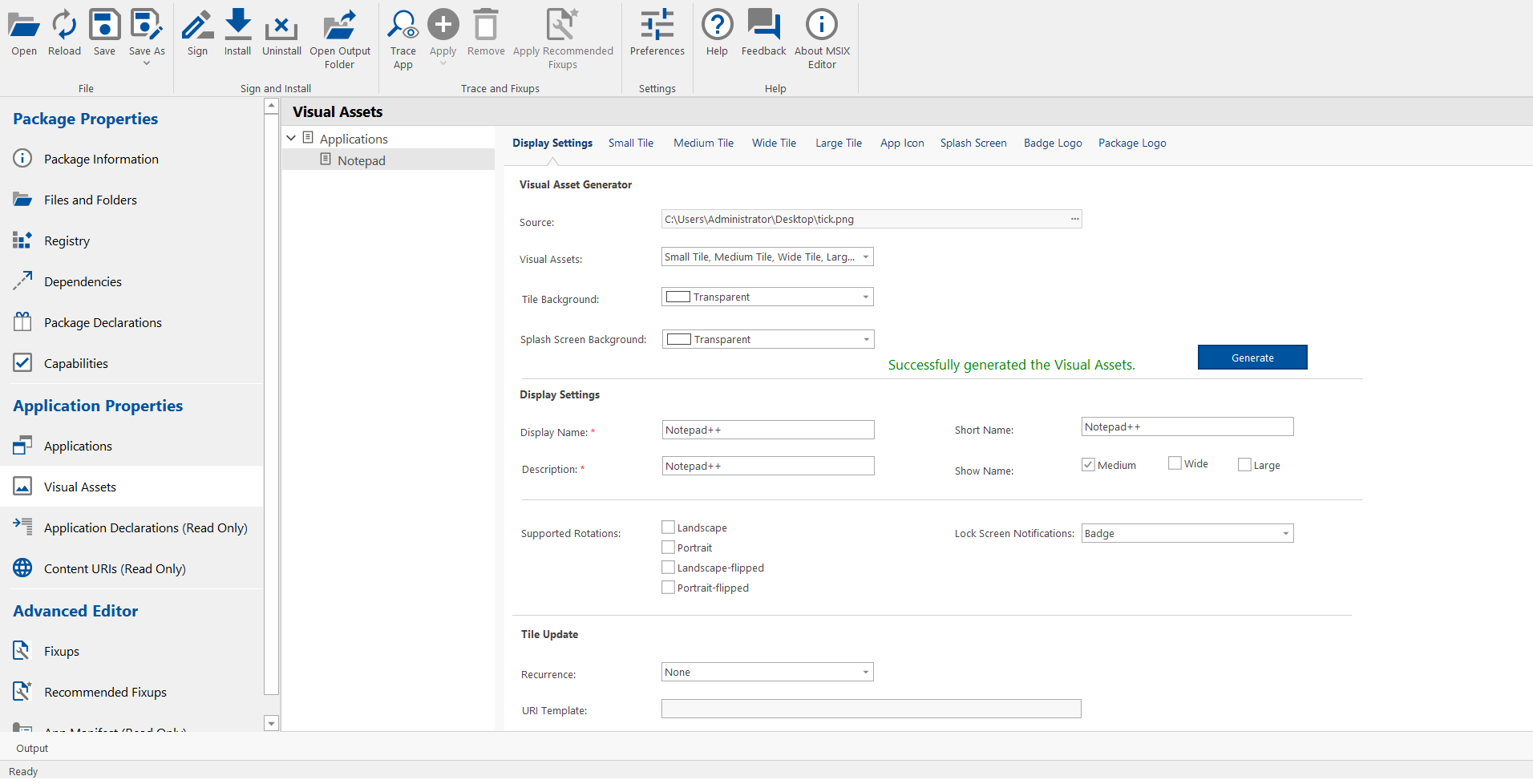

  7. Upon successful action, selected visual assets are generated. The following message will be displayed on the page.
    • Successfully generated the Visual Assets.
  8. Click Save or Save As in the ribbon for the changes to take effect.
